Flytower Racing F3 / F4 Flight Controller Betaflight OSD+ 4in1 BLHeli_S ESC+ OFF/25/200/400mW VTX for FPV For FPV Racing Drone


  • Product No.: 201791111334

Details


Description:

Instructions for use

1, Please install ANT (must be DONE) before  debugging or testing VTX(and OSD), or lead to VTX not working properly.
2, Please use proper tools to install FlyTower .It is easy to damage the PCB components by using sharp tools. (warning: Bear in mind that screws do not install too tight  between  every  layer,  so  as  not  to destroy the PCB and electronic components).
3,When debugging and testing flight control Please remove all the propeller; Try not to test indoors, So as not to cause safety accidents. Install the propeller before a test flight, please check again.
4,Please check and adjust ESC plate welding, thus brings all the  losses  and  problems,  or  you should face the consequences.
5,Please  do  not  fly  your  drone  near  the  crowd,  for  all  the  losses  from  the  crashed  aircraft,  you should face the consequences.
6,For  your  safety,  please  do  not  use  more  than  4s  battery,  Using more than 4s battery would cause safety risk, we will not undertake any responsibility.
7, Before power on, please check the positive and negative pole again to make sure whether there is a short circuit .( you also have to check that whether there is a short circuit between your motor cables and you drone’s body).
8,Please use original screws and fixings to install FlyTower.

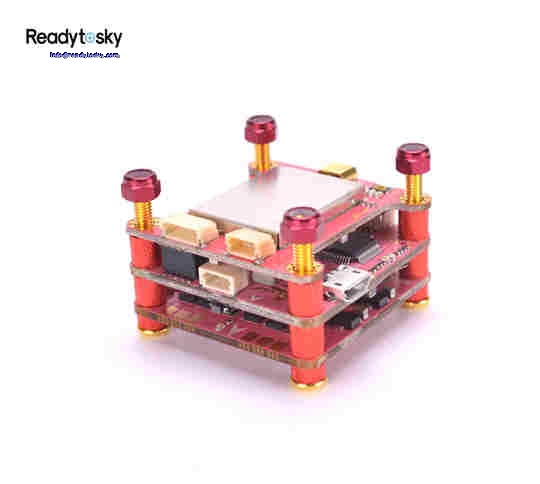

The flytower racing F3/F4 board was designed basing on Omnibus/omnibusF4SD(Betaflight) FC and highly integrated with OSD, BEC, 4 in 1 BLHeli_S / Dshot 600ESC and VTX with audio ( OFF / 25/200/400 mW). It gives you all the features what you need in FPV.
