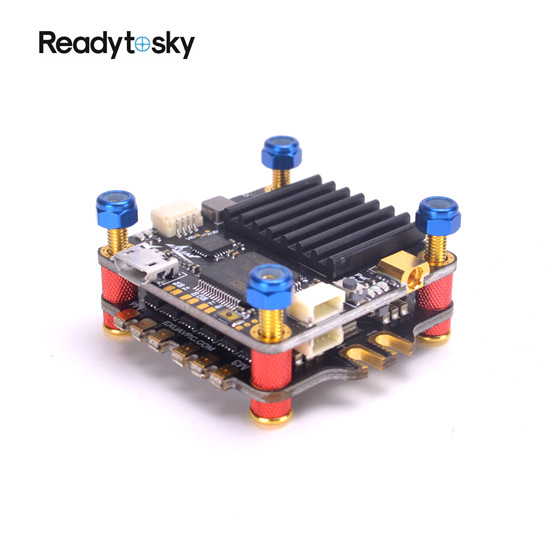

Flytower F4 Pro V2 Flight Controller Set
Function list：
1, - Practical - Easy to access connectors
2, - Configurable - Choose to use connectors
3, - Compact - Only 36x36x14mm. Lower overall 5MM height than the Ole version.
4, - Weight - 25 grams and 2 stack boards (Includes heat sink and screws and 4 In 1 ESC Version ).
5, - Professional - Symmetrical, Neat and Tidy and Easy to install in Most of Farme.
6, - 36x36mm board with 30.5mm mounting holes
7, - STM32 F405 MCU (F4 Version), Runs Betaflight firmware(supported from V3.2.4 EXUAVF4PRO).
8, - STM32 F303 MCU (F3 Version), Runs Betaflight firmware (supported from V3.2.3 OMNIBUD).
9, - Use MPU6000 as Acc & gyro over SPI Bus
10, - STM32 controls OSD chip over SPI in DMA mode, less CPU using, faster rate
11, - Micro USB socket
12, - The on-board pins are Easily connected to our next 4 in 1 ESC &PDB board
13, - Integrated VTX with audio (48CH) (OFF/25/200/600mW adjustable power video transmission)
14, - On-Board LC Filter for clear video images
15, - TX control ready via Furious FPV / IRC Tramp peripheral protocol
16, - MMCX Antenna for easy replacement and upgrades
17, - 1 x 4pins JST-SH sockets (PPM, PWM, SERIAL RX, GPIO, ADC, 3V, 5V, GND)
18, - 1 x 4pins JST-SH sockets with BUZZER & WS2811 RGB LED
19, - 1 x 4pins JST-SH socket for Video and Audio transmission
20, - 4 x 3 Pads for motor Output (4 In 1 ESC Version)
21, - 1 x 2 Pads for batter in Easy solder
Product specifications
|
4 in 1 ESC
|
PDB |
Integrated |
|
Battery Monitoring |
Integrated |
|
|
FC Power |
Integrated |
|
|
Operating Voltage |
2-6S Lipo |
|
|
Maximum continuous operating current |
4*35A 6S 4*40A 5S |
|
|
Maximum instantaneous operating current |
4*45A(5 Seconds) |
|
|
Oneshort 125/42/ Dshot 150/300/600 |
YES |
|
|
BlheliSuite Configurable |
YES |
|
|
Firmware Vision |
BLHeli_S/Dshot 150/300/600 16.6(G_H_30) |
|
|
Board Size |
36*36mm |
|
|
weight |
8.8g |
|
|
FC&VTX Board |
Firmware Vision |
Betaflight 3.2.3+ EXUAVF4PRO F4 Version OMNIBUS F3 Version |
|
Configure |
BetaFlight |
|
|
VTX Power |
OFF/25/200/600mW |
|
|
CH |
48CH (IRC Tramp) |
|
|
OSD Firmware |
Betaflight OSD |
|
|
Video Camera Voltage |
Any stand by 5V Video Camera |
|
|
Board Size |
36*36mm |
|
|
weight |
11.4g (Includes heat sink) |
|
|
FlyTower PRO V2 |
Any Board weight |
20.2g (any 2 lay PCB) |
|
total weight |
25.3g (Includes heat sink and screws) |
|
|
Installation height |
14MM (Includes heat sink) |
|
|
Screws |
M3*18mm |
|
|
Recommended Rack Plate Thickness |
Not more than 3MM （3mm above the appropriate extension of the screw） |
