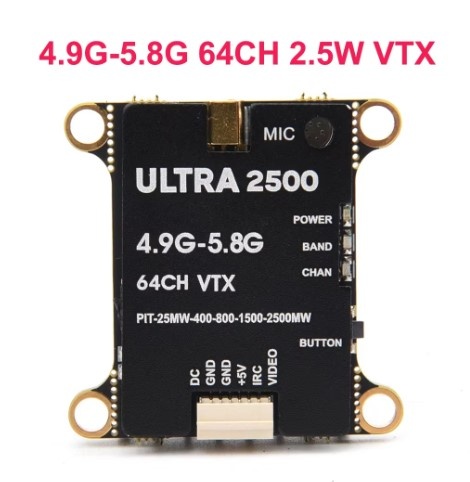

VTX 2.5W 4.9G-5.8G 64CH 2500mW Pit/25/400/800mW/1.5W/2.5W Adjustable Transmitter 30.5x30.5mm for Long Range RC Drone Models
Description:
Model: Ultra2500 VTX 4.9G-5.8G 2.5W
Input voltage: DC 7-36V(2-8S Battery)
Output: 5V@600mA(Power 5V to camera)
Input impedance: 75Ω
Protocol: IRC Tramp
Antenna connector: MMCX connector
Cable connector: GH1.25-6P connector
Output power: 25mW/400mW/800mW/1500mW/2500mW/Pit mode
Frequency tables: 64 CH
Video format: PAL / NTSC
Microphone: Built in microphone
Size: 36.5mmx36.5mmx12mm
Weight: 15g(without cable)
Mounting holes: 30.5mmX30.5mm(M3)
Note: If you want to use 4.9G and 5.8G bands at the same time, please use the antenna and VRX that can cover the frequency from 4.9Ghz-5.8Ghz . If the antenna and VRX cannot cover all bands, you may need to use different antenna and receiver when using 4.9G and 5.8G bands.
Package Included:
1 x 4.9G-5.8G 64CH 2.5W FPV VTX
