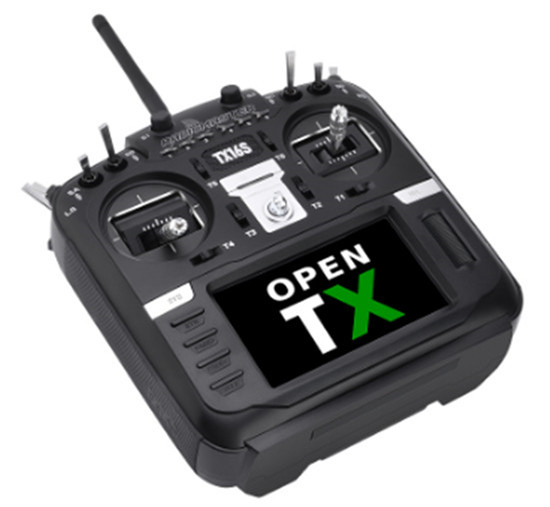

RadioMaster TX16S TBS Hall Sensor Gimbals 2.4G 16CH Multi-protocol RF System OpenTX Radio Transmitter For RC Drone
RadioMaster TX16S TBS Hall Sensor Gimbals 2.4G 16CH Multi-protocol RF System OpenTX Radio Transmitter For RC Drone
TX16S Basic Specifications:
Size: W183*H212*T66mm
Weight: 736g (without battery)
Voltage: DC7-8.4V
Battery Compartment:25*52*97mm
Battery: 2 x 18650 (tray supplied) or 2S lipo (batteries not included)
Current: 400mah (excluding external module)
Channel: 16ch
External Micro SD slot: Card Included
TX16S Features:
• STM32F429BIT6 MCU
• Industrial grade 4.3 inch 480*272 outdoor readable color screen
• Compatible with OpenTX
• Wheel menu button
• Full Size High Quality HALL sensor gimbals with CNC Aluminum Facias
• Internal Multi-protocol RF System
• Full Speed Native TBS Crossfire support (400K)
• Supports Telemetry (Protocol and Receiver dependent)
• Memory 16M (can be expanded by Micro SD card)
• Voice function
• Vibration reminder function
• Improved JR module slot
• 6-Flight Mode Buttons (Pixhawk and more!)
• Three-color LED status display
• USB-C Charging port.
• USB-C Simulator and PC connection port.
• External UART ports to expand the capabilities of your radio.
