Supra F7 BT MPU6000 5V 8V OSD Bluetooth Flight Controller for DJI Air Unit RC FPV Racing Freestyle Cinewhoop Channel Drone

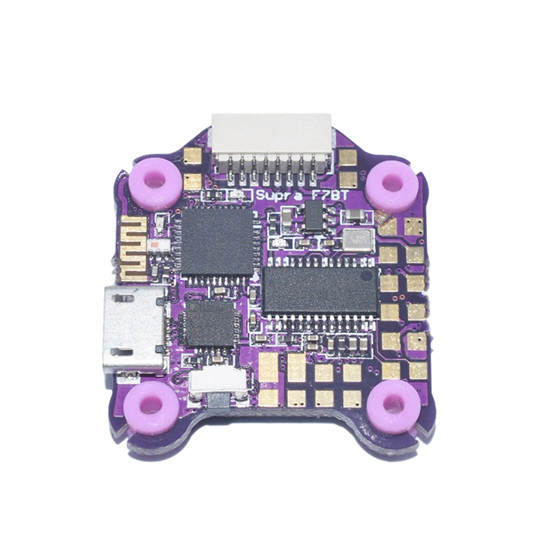

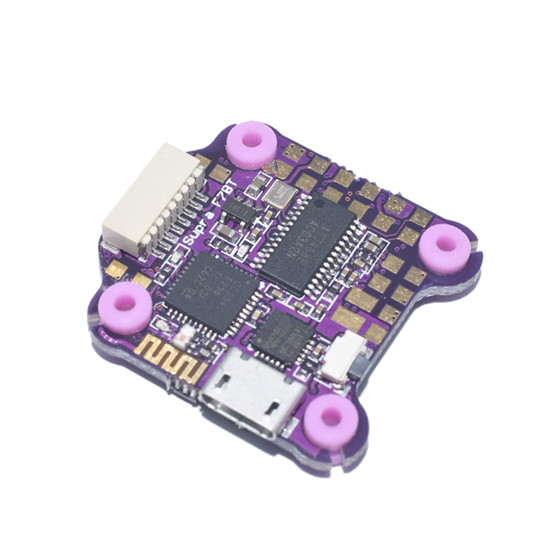

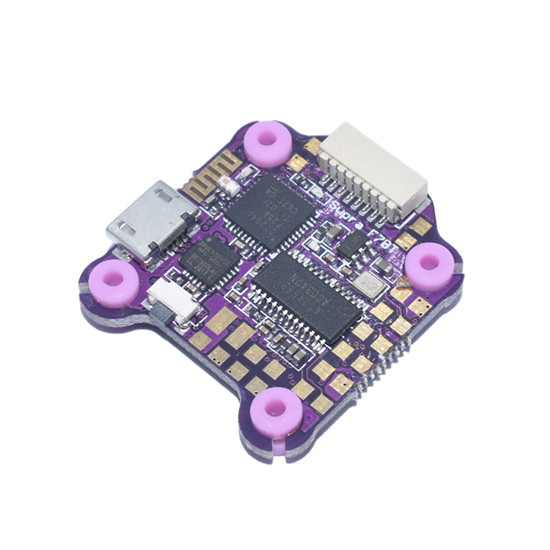

The latest design Supra F7BT mini Bluetooth, mini 20x20mm pitch F7 flight control, with STM32F722RET6 high-performance processor, MPU6000 gyroscope. It also supports Bluetooth wireless tuning.

Integrated OSD, built-in 5V / 2A (internal power supply, receiver, LED, SUMMER and other power supply), 9V / 3A BEC (camera and image transmission mode power supply, its opening and closing can be controlled by USER2), two independent BEC Working separately, do not interfere with each other, optimized circuit design, high-performance hardware, further the strong performance of flight control.

Rich and complete interface definition, 6-channel UART. In addition, the 8P 1.0MM socket makes it easier to directly enter the connector line, connect with BLHELI 32-bit ESC, and support data return (RX1).

Integrated Bluetooth 4.0, support mobile phone APP Bluetooth wireless parameter setting, convenient for area optimization parameters, especially beginners no longer have to worry about the driver.

Technical parameters:
Model: SupraF7BT
Main control chip: STM32F722RET6216MHz
Gyroscope: MPU6000 gyroscope (SPI)
Barometer: none
OSD chip: AT7456E
Black box: none
LED programming: support
BB sound: support
Input voltage: 2-6S
I2C interface: support
BEC-1: 5V / 2A (internal power supply, receiver, LED, SUMMER, etc. power supply)
BEC-2: 9V / 3A (camera and image transmission mode power supply, its opening and closing can be controlled by USER2, turn off the power when selected, the shipping fully open by standard, please configure the channel control switch by yourself)
Serial control port: six channels (UART1, UART2, UART3, UART4, UART5, UART6)
Bluetooth: support (port UART4, baud rate 115200, name Supra)
Flight control firmware: Betaflight
Target: JHEF7DUAL.HEX
Conversion of hole position and shock-absorbing ball hole position: 20 * 20mm, φ3mm
Flight control size: 30 * 27mm
Weight: 8g
