ExpressLRS ELRS 915RX 915MHz Micro Mini Receiver 5V with T type Antenna Support Wifi upgrade for RC FPV Traversing Drones Parts
ExpressLRS ELRS 915RX 915MHz Micro Mini Receiver 5V with T type Antenna Support Wifi upgrade for RC FPV Traversing Drones Parts
Indicator light status:
Double flashing: pair code mode
Slow flashing: no transmit signal received
Always on: transmit signal received
Fast flashing: WIFI upgrade mode
Frequency pairing steps:
1. After the receiver is connected to the flight control, connect the USB to power the flight control. Repeat the operation twice, when the third time you insert the USB, the LED will start to double flash and the receiver will enter the code pairing mode.
2. After connecting the 915M (868M) ELRS HF head module and the remote control correctly, copy the ELRS.LUA file to the SD card in the remote control, the directory is SD Card/Scripts/tools, then run ELRS.
3. After successful binding, the LED on the receiver will turn on and the telemetry signal will be received.

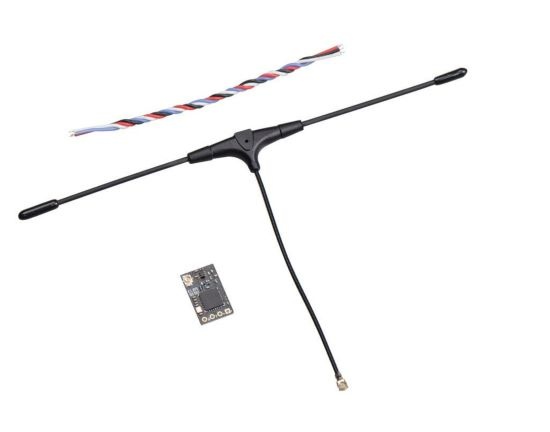

1 x Receiver
4 x Cable
1 x T-shaped antenna
