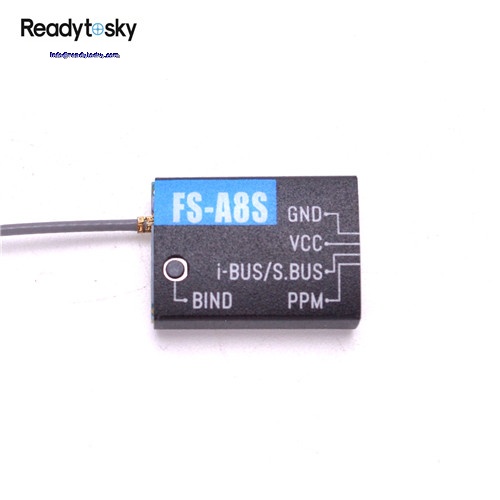

Flysky FS-A8S 2.4G 8CH Mini Receiver with PPM i-BUS SBUS Compatible FS i6 FS i6S I6X For RC Qaudcopter FPV Racing Drone


  • Product No.: 201791191722

Details


The FS-A8S is a compact 1-way receiver designed for multi-rotor aircraft. It uses the AFHDS 2A(Aotumatic Frequescy Hopping Digital System) protocol, supports standart PPM output and has i-BUS support for up to 18 channels.

Description:
Brand Name:Flysky
Item Name:FS-A8S Receiver
Channels: PPM 8CH, i-BUS 18CH
Model type: Multi-rotor
Frequency range: 2.408-2.475GHz
b and width: 500KHz
b and number: 135
RX Sensitivity: -92 dBm
2.4GHz system: AFHDS 2A
Modulation type: GFSK
DSC port: PPM/i-BUS/S.BUS
Transfer method: FHSS
Data output: 1.5mm*3 Pin  PPM/i-BUS/S.BUS
Antenna length: 26mm (Not including brass contacts)
Input power supply: 4.0-8.4V
Display method: LED
No ground interference ( Transmitting and receiving 1 m from the ground): >300m
Working current: 40mA
Each channel data: depend on the transmitter
Channel delay: <15mS
Certificate: CE0678, FCCID: N45ZA8S00
Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F

Package Included:
1X Flysky FS-A8S 2.4G 8CH Mini Receiver
