NEW BGC 3.12 MOS Large Current 2-Axis Brushless Gimbal Controller Board Driver Alexmos Simple Firmware 2.2b2 For Quadcopter

NEW BGC 3.12 MOS Large Current 2-Axis Brushless Gimbal Controller Board Driver Alexmos Simple Firmware 2.2b2 For Quadcopter
  • NEW BGC 3.12 MOS Large Current 2-Axis Brushless Gimbal Controller Board Driver Alexmos Simple Firmware 2.2b2 For Quadcopter
  • NEW BGC 3.12 MOS Large Current 2-Axis Brushless Gimbal Controller Board Driver Alexmos Simple Firmware 2.2b2 For Quadcopter
  • NEW BGC 3.12 MOS Large Current 2-Axis Brushless Gimbal Controller Board Driver Alexmos Simple Firmware 2.2b2 For Quadcopter
  • NEW BGC 3.12 MOS Large Current 2-Axis Brushless Gimbal Controller Board Driver Alexmos Simple Firmware 2.2b2 For Quadcopter

NEW BGC 3.12 MOS Large Current 2-Axis Brushless Gimbal Controller Board Driver Alexmos Simple Firmware 2.2b2 For Quadcopter


  • Product No.: 2020831153057

Details

 Description:



The current version of the controller is version 3.1,they normaly come with the bootloader on the chip;

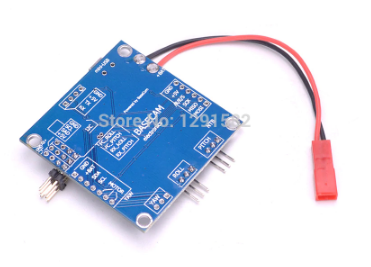

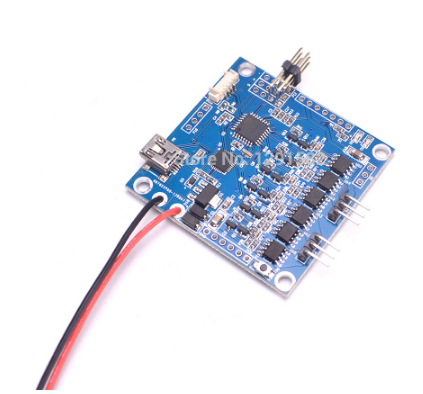

Brushless Gimbal Controller 3.1

Stabilized VBUS (USB port)

Pin layout optimized GND, A1 and A2 GND, multi-port, 5V

L6234 brushless motor driver

2 outputs for brushless motors

4 receiver inputs

6 analog inputs

Serial port available

Power LED (blue)

Small LEDs on the USB

Dimensions 50 mm x 50 mm

Standard MK style mounting holes 45 mm x 45 mm

2 instead of 4 glass diodes SOT23

5V better stabilized

Shifter lever on the I2C Bus (3.3V to 5V)

Pull reduced (for better edges)

Size: 50mm * 50mm



MPU6050 3 Sensor module

Chip: MPU-6050

Power supply: 3-5V

Gyroscope range: + 250 500 1000 2000 °/ s

Acceleration range: ± 2 ± 4 ± 8 ± 16 g

Communication: Standard IIC communication agreement

Chip built-in 16 bit AD converter, 16 bits of data output

Pin Pitch: 2.54mm

Size: 20.3mm x 16.5mm

Total weight: 17g

Can only use 2.2b2 firmware
