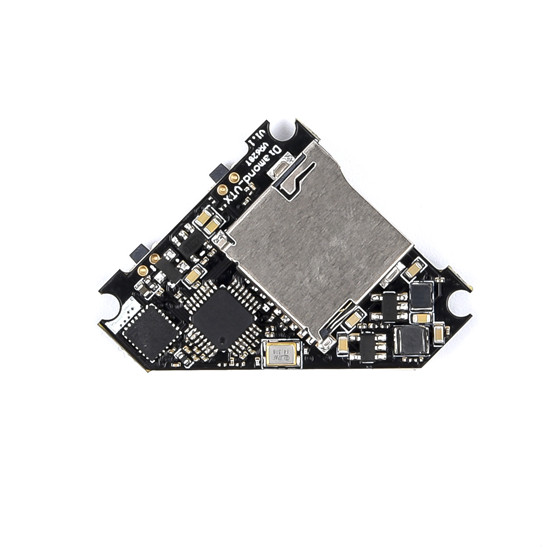

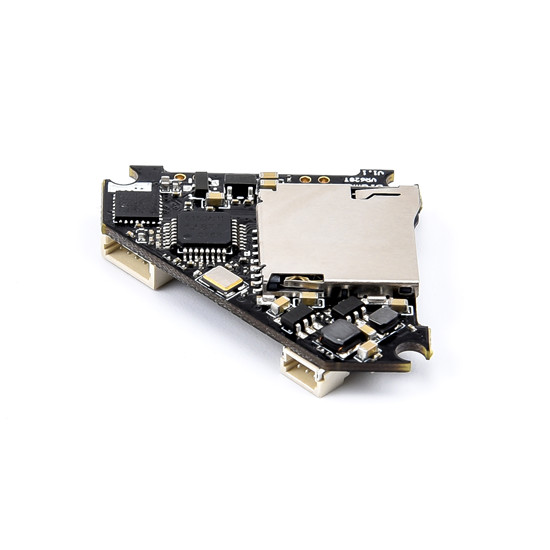

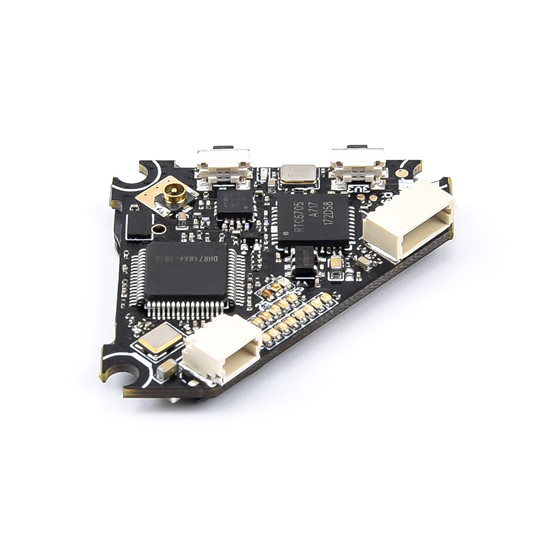

Happymodel Diamond VTX 5.8G 40CH 25mw / 200mw Switchable VTX DVR for Runcam Nano2 Mobula7 Reddevil Trashcan RC FPV Racing Drone
Item name:Happymodel Diamond VTX 5.8G 40CH 25mw / 200mw Switchable VTX DVR for Runcam Nano2 Mobula7 Reddevil Trashcan RC FPV Racing Drone
Brand Name: Happymodel
Brand Name: Happymodel
Output power: 25~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 250mA~510mA(type)
Antenna: RG178 antenna
U.FL interface
Frequency: 5.8GHz 5bands 40 channels
With Raceband
Smartaudio ready
Weight: 3g without antenna
Video Output Size: VGA (640×480)
Video Output format: NTSC
Record video size : 1280×720 @25FPS
TF Card support: Max.32G
Interface: JST SH1.0 3pin for Camera
JST SH1.0 5pin for Connect with F3/F4 Flight controller
Compress Format: AVI
Features:

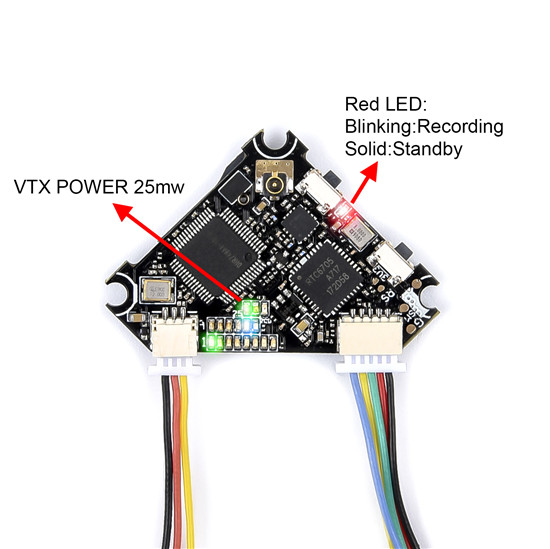

Short touch the button to Start/Stop Video recorder
The video will split to 2 minutes automatically
Best for upgrade Mobula7 / Eachine Trashcan
Small size , lighter only 3gram and easy to mount in a regular whoop
Built-in DVR(Video size 1280×720)
Auto start when power on
Note: Auto-save when Power off is not support, please remember to press the stop button after landing
