Chameleon 220 220mm FPV Frame Quadcopter Kit 2205 2300kv Motor Littlebee 30A BLHeli-s ESC Flysky I6 For PUDA RC FPV Drone


  • Product No.: 20184232037

Details


Description:
 As a new flagship model, every included feature was carefully considered and artfully incorporated into the final revision. While many of those features are fairly traditional, there are a few innovations that would benefit from a closer examination. The first is the "low-rider" style top-plate. This lowered mount gets the battery closer to the center of gravity for this machine. This means your rolls and flips will be snappier, and less likely to over-rotate. An unexpected (but very welcome) feature of the recessed top-plate is that the camera cage will be more likely to protect your battery in the event of an upside-down impact. Your wallet and batteries will both thank you for that one.

Speaking of the camera cage, the 4mm thick, 6061 aluminum structure on the front of this frame corners the market for providing the most protection and versatility in mounting your cameras. Not only will your frame fully protect your FPV camera above 25 degrees but it allows for near unlimited vertical play. If you want to fly backwards like Suki or take things at a more relaxed pace, this will let you achieve the angle you need. Plus, Armattan's thumb-screw system makes it easy to switch between the two on the fly (pun totally intended). In addition, the HD camera mounting plate allows you to adjust the angle of your recording device from 30 up to 60 degrees. No more will you have to cut and mount a wedge of foam in order to get the ideal, "single" recording angle (as if that exists). You can fine tune larger or smaller as desired with your standard M3 driver. What could be simpler than that?

The third and final Chameleon innovation (that we will explore here) is the VTX mount on the rear of the bus. While it is outwardly a solid point to mount your SMA adapter, it has a couple secret functions as well. Cut into the carbon fiber top-plate are a set of holes that line up above where you will mount your VTX. These were carefully measured to align with the screens, dip-switches, and buttons of many popular transmitters on the market today (Hawkeye, Aomway, etc). We think changing your channel at the field should be as quick and easy as changing your camera angle. This helps us achieve that goal. The other secret is the little bar next to the SMA hole. This is a diversity receiver mount for your RX of choice. If you zip two ties to that spar you can angle them for horizontal (out the back) and vertical (out the top) polarization. This should help prevent against an unforgiving fail-safe at the start of your greatest dive yet.

Chameleon Specs:
Frame Weight:120.8g approx
Motor to Motor:220mm
Frame Shape:Freestyle Bus
Bottom Plate Thickness:4mm
Top Plate Thickness:2mm
Aluminum Parts:Aircraft Grade 6061
Motor Mount Pattern:22xx
Max Stack Height:20mm

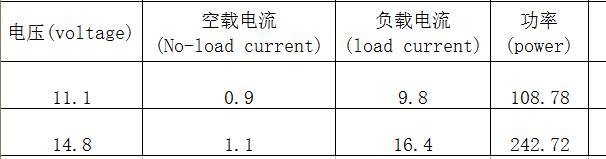

2205 Motor Specification:
KV: 2300KV,
Thread: CW  and CCW Screw Thread
Shaft diameter: M5
Motor mount hole size: M3
Battery: 3-4S lipo battery
Usage: for 180, 210, 220, 250 Frame Kit
sprot 2205


Littlebee 30A BLHeli-s ESC:
The latest BLHELI_S program
special driver chip to make the response speed is very fast
The chip EFM8BB21F16, frequencies up to 48MHz
support Oneshot125, Oneshot42, Multshot, Damped Light

Technical Parameters:
Continuous current: 30A
Instantaneous current (10 seconds): 35A
BEC Output: None
Input voltage: 2-6S Lipo
Program: BLHELI-S

F3 Flight Control acro / deluxe version Specs:
* 36 x 36 mm board with 30.5 mm mounting holes
* ~5 grams
* STM32F3 CPU
* High-capacity flash (Acro and Deluxe)
* MPU6050 accelerometer/gyro
* MS5611 barometer (Deluxe only)
* HMC5883 compass (Deluxe only)
* MicroUSB socket.
* 4 x 4pin JST-SH sockets (I2C, SWD, 2xUART)
* 2 x 8pin JST-SH sockets (PPM, PWM, SERIAL RX, GPIO, ADC, 3V, 5V, GND)
* 8 x 3pin through-holes for pin headers for ESC/Servo connections
* 2 x 4pin through-holes for pin headers for 2x serial ports
* 2 x 2pin through-holes for pin headers for battery voltage and buzzer
