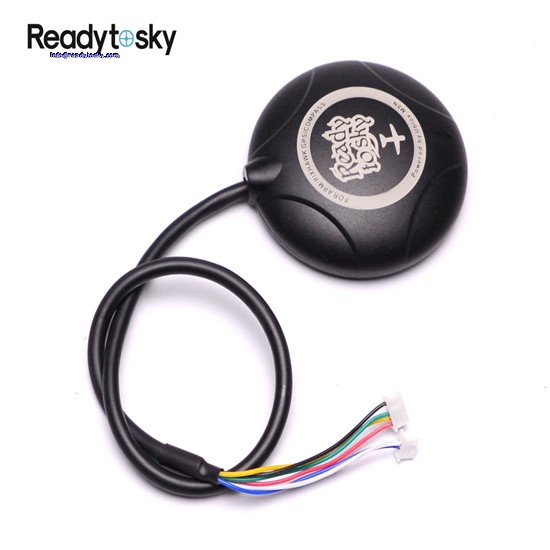

Ublox NEO-M8N M8N 8N High Precision GPS Built in Compass w/ Stand Holder for APM AMP2.6 APM 2.8 Pixhawk 2.4.6


  • Product No.: 201762183239

Details


Description :

A new generation Ublox GPS NEO-M8N,with low power consumption and high precision, the ultimate accuracy is 0.6 meters, actually almost 0.9 meters, greater than the previous generation NEO-7N 1.4-1.6 meters accuracy,support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 protocol and mode or more.

GPS Chip parameters:
 Receiver type 72-channel u-blox M8 engine
 GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
 SBAS L1 C/A: WAAS, EGNOS, MSAS
 Galileo-ready E1B/C (NEO-M8N)
 Nav. update rate1 Single GNSS: up to 18 HZ
 Concurrent GNSS: up to 10 Hz
 Position accuracy2 2.0 m CEP
 Acquisition2 Cold starts: 26 s
 Aided starts: 2 s
 Reacquisition: 1.5 s
 Sensitivity2 Tracking & Nav: –167 dBm
 Cold starts: –148 dBm
 Hot starts: –156 dBm
 Assistance AssistNow GNSS Online
 AssistNow GNSS Offline (up to 35 days)3
 AssistNow Autonomous (up to 6 days)
 OMA SUPL & 3GPP compliant
 Oscillator TCXO (NEO-M8N/Q),
 Crystal (NEO-M8M)
 RTC crystal Built-In
 Noise figure On-chip LNA (NEO-M8M). Extra LNA for
 lowest noise figure (NEO-M8N/Q)
 Anti jamming Active CW detection and removal. Extra
 onboard SAW band pass filter (NEO-M8N/Q)
 Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N)
 Supported antennas Active and passive
 Odometer Travelled distance
 Data-logger For position, velocity, and time (NEO-M8N)

Operating temp. –40° C to 85° C
 Storage temp. –40° C to 85° C (NEO-M8N/Q)
 –40° C to 105° C (NEO-M8M)

Supply voltage 1.65 V to 3.6 V (NEO-M8M)
 2.7 V to 3.6 V (NEO-M8N/Q)
 Power consumption4 23 mA @ 3.0 V (continuous)
 5 mA @ 3.0 V Power Save Mode
 (1 Hz, GPS mode only)
 Backup Supply 1.4 to 3.6 V

NEO-M8N-0 u-blox M8 Concurrent GNSS LCC Module,
TCXO, flash, SAW, LNA,
Timepulse Configurable 0.25 Hz to 10 MHz
