Readytosky 12090 90KV 8.66KW Brushless Motor

Readytosky 12090 90KV 8.66KW Brushless Motor
  • Readytosky 12090 90KV 8.66KW Brushless Motor
  • Readytosky 12090 90KV 8.66KW Brushless Motor
  • Readytosky 12090 90KV 8.66KW Brushless Motor
  • Readytosky 12090 90KV 8.66KW Brushless Motor

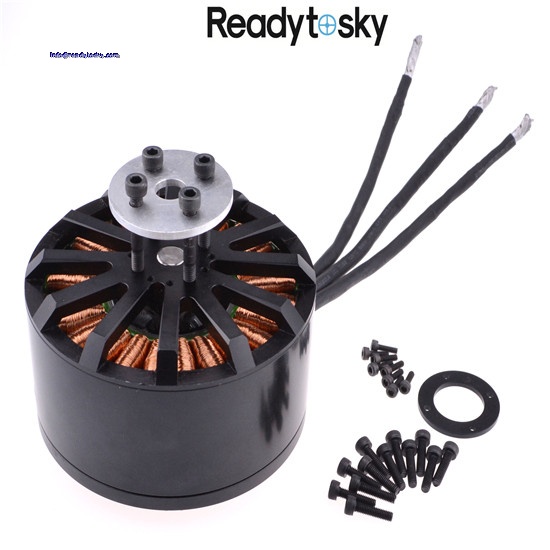

12090 90KV 8.66KW Brusheless Motor Outrunner Motor For Multicopter


  • Product No.: 2017050714

Details


  • Features:

  • - Flat design, multi pole exterior rotor brushless motor, large torque, high efficiency
    - Multiple mounting holes at the bottom of the motor, which is compatible with the mainstream multi-rotor on the market
    - Excellent consistency, stability and clear positioning, tested by the professionals
    - High efficiency, reliable brushless motor for Vtol
    - Motor go through rotation testing
    - Light weight and great exterior design
    - Long life Japanese NMB ball bearings
    - Efficient Japanese Kawasaki stator steel
    - Unique wiring method and elaborate technology
    - The best efficiency based on the relevant pull


      Specifications


Model: 12090
     KV (rpm/v): 90K
     Effience:    85.7%
     Weight: 2.48K
     Diameter : 118MM
     Thrust: 3150rpm

     Rotate speed:3150rpm
     Torque:23.3N*m
     Power:8.66KW
     Efficiency:85.7%
     External diameter:118mm
     Motor length:72.5
     Weight:2.48KG
     24.8V no-load current:3.5A
     Diameter of axle:12mm
