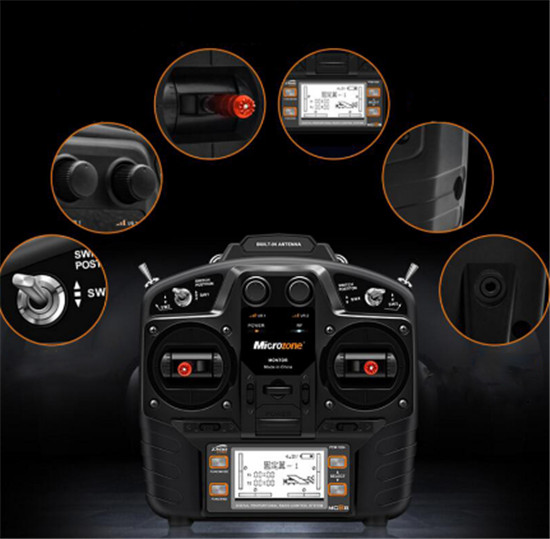

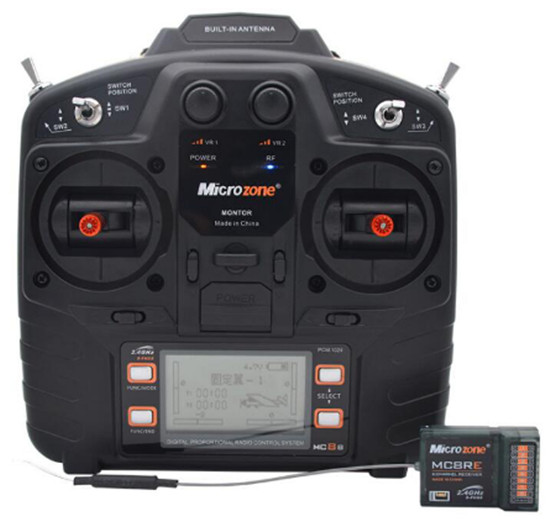

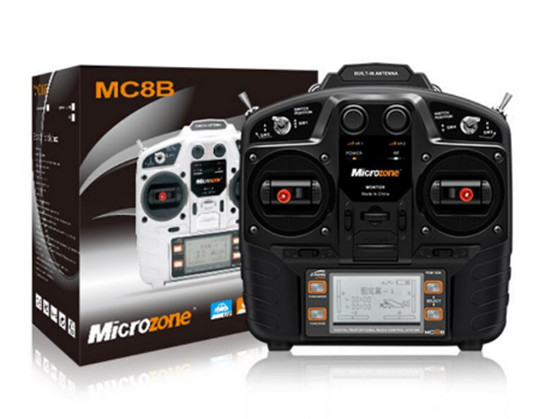

Microzone MC8B 2.4G 8CH RC Transmitter & MC8RE Receiver radio system for Remote Control aircraft helicopter fixed-wing drone
Low voltage alarm mode: LED indicator and buzzer alarm at the same time. Supply analog and external power, LCD displays Chinese and English menu.
The receiver wide voltage design (DV 2V-9V) supports 8 PWM signals and 1SBUS signals.
Helicopter function: support 90 degree, 120 degree CCPM and gyro sensitivity adjustment.
The classical neutral knob is fine tuned to facilitate quick switching of the platform and attitude.
The 8 channel full function remote controller is suitable for fixed wing aircraft, helicopters and multi axis aircraft.
Transmitter Specifications:
| Channel: | 8 channels |
| Color: | Black/Silver |
| Model Type: | Fixed-wing model airplane, UAV, Helicopter, Cars, Boat. |
| RF Range: | 2405MHz-2479MHz |
| RF power: | Less than 100MW |
| Working Current: | Less than 150mA |
| Working Voltage: | 4.5-8.5V |
| Modulation Mode: | FSK |
| Sensitivity: | 1024 |
| Signal Output: | 8 PWM Signals and 1 SBUS Signals |
| Analog and external power supply( NOT than 8V) | YES |
| 2.4GHz Mode: | FHSS |
| Power: | 6V 4*1.5AA |
| Weight: | 580g |
| Size: | 215*105*220mm |
| Certificate: | FCC,CE |
Low voltage alarm mode: LED indicator and buzzer alarm at the same time (according to battery type in the system).
The LCD Chinese and English menu displays.
Internal software support: CH5---CH8, arbitrary replacement of settings and CH1--CH8 signal detection.
Internal software support: M1 and M2 throttle swap (double return), can set the flight time, the main screen to build a lock, a factory reset.
Helicopter function: support 90 degree, 120 degree CCPM and gyro sensitivity adjustment.
Receiver Specifications:
| Package Name: | MC8RE Receiver |
| Antenna Length: | 110mm |
| Output Channel: | 8 PWM signal channels and 1 SBUS signal channel |
| Reception Frequency: | 2410MHz- 2479MHz |
| Size: | 42*28*12mm |
| Weight: | 12g |
Application: MC8A, MC8B remote control, fixed wing models, UAV, helicopter models, trams and tanker models, ship models
