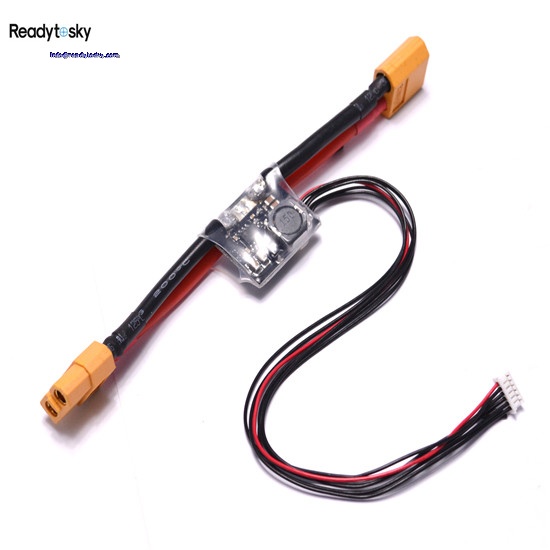

Readytosky Power Module (With Yellow XT60 Plug Connectors


Description :

The APM 2.6 Power Module is a simple way of providing your APM 2.6 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from up to a 6S LiPo battery. The Power Module comes completely assembled with Deans connectors, and wrapped in shrink tubing for protection.

Note: The Power Module is only designed to power APM, a RC receiver and APM accessories (GPS, 3DR radio). It is not designed to power servos. Use your aircraft's own ESC/BEC for that.

Specifications:

Max input voltage: 28V

Max current sensing: 90A

Voltage and current measurement configured for 5V ADC

Switching regulator outputs 5.3V and 3A max

6-pos DF13 cable plugs directly to APM 2.5's 'PM' connector



        Support 6S battery
