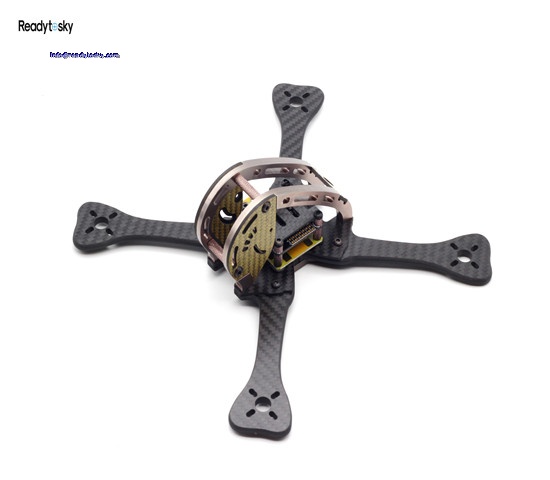

GEP-LX5 220mm Carbon Fiber Quadcopter Frame
Description:
Suitable for 5-inch paddle rack, wheelbase is 220mm
The whole machine to use 3k ultra-light carbon plate + aviation aluminum # 7075 body.In order to strengthen the four arm, we also designed a fixed four arm of the aluminum alloy, so that the arm is not easy to shift.
For the perfect fit for more lenses, we presented two lens mounts for the program, suitable for the foxeer HS1190 model camera and Runcam Swift 1 generation 2 generation model camera. In addition we also equipped with a PDB, with BEC output 5v 3A and 12V 0.5A. Machine all use YFS screws, 12.9 strength
Parameter:
Wheelbase: 220mm (5 inch)
Arm thickness: 4mm
Side plate thickness: 2mm
The remaining thickness: 1.5mm
Side plate color: blue, yellow, pink, optional
Recommended configuration: (but not included)
Flight Control: F3 / Naze32 / CC3D
Motor: 2204/2205/2206/2305/2306
Electricity: 20A-30A
Paddle: LX5 with 5 inch paddle
Battery: 3S 1300mAh ~ 4S 1500mAh
Characteristic:
1. Aviation aluminum # 7075 high-precision CNC body, very strong and fried
2. 3K high-strength carbon plate to ensure that the framework is strong
3. One aluminum structure, bound to four arm, will not shift
4. True X structure, suitable for racing with Freestyle fancy flight
5. Reasonable gopro, runcam location, easy to video
6. 13.5mm wide, 4mm thick arm design, minimal drag coefficient
7. 5-inch wheelbase 220mm, a wider air through
8. YFS screw, 12.9 level hardness
9. Two sets of camera side panels, support HS1190, HS1170, Swift, OVL and other lenses
10. The position of the motor compartment is widened and the collision is not easy to hit the motor
11. Camera adjustable, 0-60 degrees
12. comes with a PDB distribution board, integrated XT60, with BEC (5 / 12v output)
Package list:
1 set 220mm Quadcopter Frame as the picture showed (just a frame kit, not assembled)
1 pcs PDB
