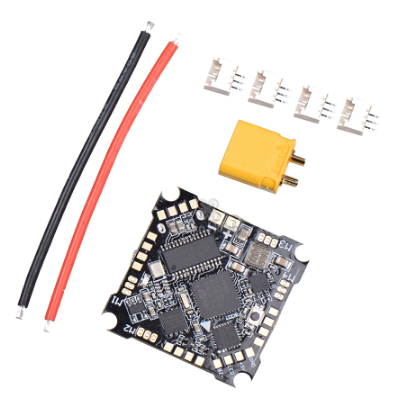

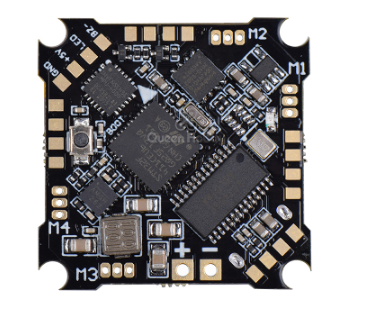

SH50A OSD BEC 2.5A Flight Control 5A ESC AIO 2-3S for RC Cinewhoop toothpick Drone FPV Racing MPU6000 F411
SH50A flight control 2-3S integrates four-in-one brushless ESC, uses MPU6000 sensor and connects through SPI bus, improves the sampling rate of the sensor, F4 main control increases the operating frequency of the program, provides higher control accuracy and faster response speed. The integrated OSD comes with Betaflight online tuning, which can be used in the current horizon four-axis small brushless four-axis rack. Comes with 8MB black box, integrated four-in-one ESC, supports DSHOT signal output. Light weight, small size, low thickness and other advantages.

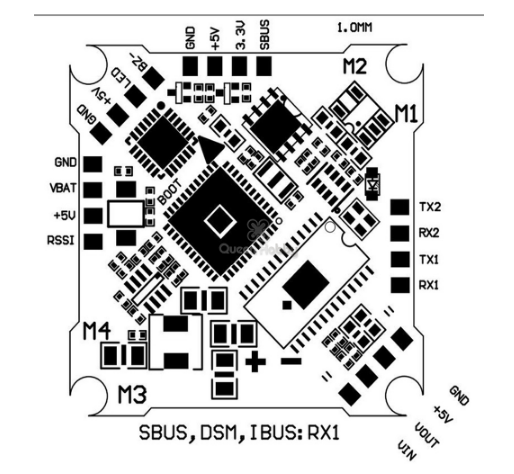

Receiver configuration, when SBUS/IBUS and DSM receiver input, please configure RX1 as input interface.
Flight control configuration:
CPU: STM32F411CEU6
Sensor: MPU-6000 3-axis accelerometer/3-axis gyroscope (SPI connection)
Power supply: 2-3S battery input (DC 7.4V-12.6V)
BEC: 5V 2.5A
Black box: 8MB
Receiver: PPM, SBUS, IBUS, Spektrum DSM2/DSMX, 1024/2048.
Built-in OSD interface
Led_Strip interface
BUZZER buzzer interface
UART2: TX2 (for image transmission), RX2
UART1: TX1, RX1 (for receiver)
Three sets of BEC output pads
Support BLheli suite ESC programming
Built-in voltage detection
Board size: 28.5*28.5MM
Screw hole spacing: 24.5*24.5MM diameter 3.0MM
Board weight: 3.3g
Brushless ESC configuration:
Power supply: 2-3S
Current: 5A continuous peak value 7A (for 2 seconds)
Support BLHeliSuite programmable
Factory firmware: S_H_50_REV16_7.HEX
Signal support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM
